DYNTEK Expanded Mesh



DYNTEK Expanded Mesh can be used in many applications, including:

  • Window and air-conditioning grilles
  • Walkways and catwalls
  • Anti-glare mesh for road dividers
  • Speaker grilles
  • Air and fuel filters
  • Anti-explosive mesh in vaults and security areas
  • Sunscreen and Insect Screen Mesh

DYNTEK Expanded Mesh is available in various metals, including non-metals, and expanded into varying sizes and shapes.


Benefits

DYNTEK Expanded Mesh can be manufactured in various thicknesses, strand widths and openings. This provides much flexibility in its applications:

Regulations Of Light, Fluid and Air
By varying the thickness and strand width of DYNTEK Expanded Mesh, the screening of light as well as diffusion of fluid and air flow can be accomplished.

Vision And Sound Control
By correct angling and positioning, DYNTEK Expanded Mesh can be used to obstruct vision (anti-glare or aesthetic purposes) in addition to deflecting sound.

Construction Material Reinforcement
DYNTEK Expanded Mesh serves as an excellent plaster key and increases building strength when embedded in concrete, plaster and glass for construction work.

Increased Heat And Electrical Conductivity
The formation of DYNTEK Expanded Mesh is jointless, which is ideal for conditions where uninterrupted heat flow and electrical conduction is required.

Greater Load Capacity
DYNTEK Expanded Mesh, in unflattened form and with vertically-angled strands, is lighter than sheet metal of the same thickness, while having a greater load capacity.



Notes

Dyntek Expanded Mesh can be custom-manufactured with post-production processes such as levelling, flattening, hot-dipped galvanising to BS 729, powder coating to BS 5493 and aluminium anodising. Please contact us and we will be happy to assist.



Mesh Specifications

Product Code
Mesh Opening (mm)
Material Thickness (mm)
Strand Thickness (mm)
SWM
LWM
MEM23/0505
2.0
3.0
0.5
0.5
MEM36/0507
3.0
6.0
0.5
0.7
MEM48/0510
4.0
8.0
0.5
1.0
MEM510/1010
5.2
10.0
1.0
1.0
MEM613/1015
5.7
12.7
1.0
1.5
SEM929/0715
9.0
29.0
0.7
1.5
SEM929/1015
1.0
1.5
SEM929/1515
1.5
1.5
SEM929/2015
2.0
1.5
SEM1230/1215
12.0
30.0
1.2
1.5
SEM1230/2548
2.5
4.8
SEM1638/1020
16.0
38.0
1.0
2.0
SEM1638/1520
1.5
2.0
SEM1638/1528
1.5
2.8
SEM1638/2028
2.0
2.8
SEM1676/1063
16.0
76.0
1.0
6.3
SEM1676/1563
1.5
6.3
SEM2257/1528
22.0
57.0
1.5
2.8
SEM2257/2028
2.0
2.8
SEM2257/3035
3.0
3.5
SEM2540/3032
25.0
40.0 / 81.0
3.0
3.2
SEM3576/2030
35.0
76.0
2.0
3.0
SEM3576/3045
3.0
4.5
HEM42135/5080
42.0
135.0
5.0
8.0
HEM45135/5011
45.0
135.0
5.0
11.0
HEM3075/3080
30.0
75.0
3.0
8.0
HEM3075/5011
30.0
75.0
5.0
11.0
HEM2575/5075
25.0
75.0
5.0
7.5

Other sizes available on request. When ordering, please specify product code followed by suffixes to indicate material/finishing



Material Finishing Codes (Suffix)

U : Uncoated Steel
G : Pre-Galvanised Steel
H : Hot-Dipped Galvanised Steel (e. g. MEM 36/0507AC)
S : Stainless Steel Grade 304 (e. g. SEM 2257/3035U)
A : Aluminium
C : Powder Coated Finish (second suffix)

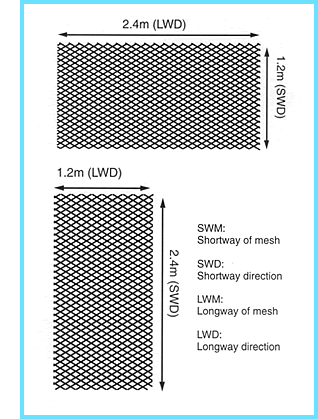

Expanded Mesh Illustrations
